Six Bundled Conductor Stringing Pulleys With Seven Wheels Central Steel Sheave

Six bundled Conductor Stringing Pulleys With Seven wheels central steel sheave Admin Edit

500.0 USD
Min. Order: 1 Piece/Pieces
Trade Term: FOB,CFR,CIF,DDP,CIP
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Production Capacity: 1000 pcs per month
Packing: plywood case steel... Delivery Date: 30-45 days
Brand Name: Dongfang Description of Aerial Rollers: Six Conductors Pulleys Blocks
Model: SHQ660 SHQ822 SHQ916 Diameter of conductor: 25-40 mm
Material of sheave: Nylon or aluminum alloy sheave size: 660mm - 916 mm
Working Load: 80 KN - 200 KN

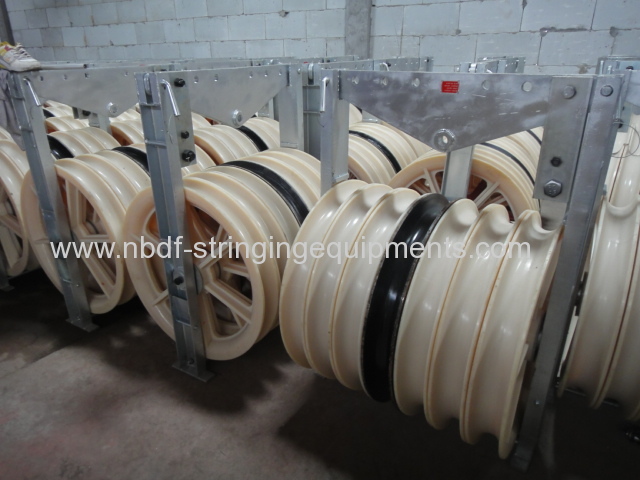

Six Bundled Conductors Stringing Pulley Blocks are used for six conductors stringing on overhead 500 or 800 KV transmission lines. The sheave can be made in aluminum alloy or nylon , optional lined with neoprene. The central sheave is made in steel or nylon. All the sheaves are mounted on ball bearings. The frame is made in galvanized steel.



Six Conductors Stringing Blocks

Item No.

Model

ACSR Size Range (mm²)

Working Load (KN)

Weight (kg)

Material of Sheave

10129

SHQZ660

400-500

80

260

Central steel sheave, Side sheave Aluminum lined with neoprene

10130

SHQ660A

400-500

80

190

Central steel sheave, side Nylon, optional can be lined with neoprene

10146

SHQ822

600-700

120

280

10154

SHQ916

700-800

150

320

10168

SHQ1040

900-1200

210

390

Application: It is suitable to string six stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.

The central steel sheave is specially strengthened for passage of pilot wire rope.

Please Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.





Overhead Transmission Line Large Diameter Stringing Blocks

Item No.

Model

No. of Sheaves

Rated Load (KN)

Diameter of Groove /

Conductor Size

Weight (kg)

Material

Outer Dia. / width Of Sheave

10101

SHD-508x75

1

20

Φ408mm / ≤ACSR400 mm²

22.5

Aluminum

 Φ508mm / 75mm



10102

SHS-508x75

3

40

86

Central sheave steel

10103

SHW-508x75

5

60

108

10104

SHDN-508x75

1

20

18.5

Nylon

10105

SHSLN-508x75

3

40

51.5

Central sheave Nylon

10106

SHWLN-508x75

5

60

91.5

10107

SHSQN-508x75

3

40

60

Nylon

10108

SHWQN-508x75

5

60

75

10121

SHD-660x100

1

20

Φ560mm / ACSR400 - 500 mm²

30

Aluminum

Φ830mm / 110mm



10122

SHS-660x100

3

40

106

Central sheave steel

10123

SHW-660x100

5

60

136

10124

SHDN-660x100

1

20

20

Nylon

10125

SHSN-660x100

3

40

92

Central sheave Nylon

10126

SHWN-660x100

5

60

120

10127

SHSQN-660x100

3

40

85

Nylon

10128

SHWQN-660x100

5

60

100

10141

SHDN-822x110

1

30

Φ710mm / ACSR500 - 630 mm²

25

Nylon

Φ916mm / 110mm



10142

SHSQN-822x110

3

60

130

Central sheave Nylon

10143

SHWQN-822x110

5

90

180

10144

SHSQN-822x110

3

60

100

Nylon

10145

SHWQN-822x110

5

90

130

10151

SHDN-916x110

1

50

Φ800mm / ACSR720 - 800 mm²

45

Nylon


10152

SHSQN-916x110

3

80

140

10153

SHWQN-916x110

5

150

235

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.



Shipment

1. The blocks will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The blocks will be loaded in container.

2. It also can be packed in plywood case or steel frame case.


Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.



Why choose us:

1. High quality and competitive price

2. Leading and biggest manufacture for stringing equipment and tools in China.

3. We have 25 years of production experience, and more than 1000 customers in the country and abroad market. The stringing blocks have been sold to more than 40 countries.

4. Customer specially ordered products are available, such as helicopter stringing blocks.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service



According to the quantity of conductors per phase on transmission line, we have single sheave stringing blocks, 3 sheaves stringing blocks, 5 sheaves stringing blocks and 7 sheaves stringing blocks. The 3 sheaves and 5 sheaves stringing blocks can be used for both 2 or 3 conductors and 4 or 5 conductors stringing on transmission line.

We have different structure for 3 sheaves or 5 sheaves stringing blocks, e.g. normal structure stringing blocks and detachable stringing blocks. For normal structure stringing blocks, we also have designed Tandem type stringing blocks, for the big corner tower and big span towers.

Some special stringing blocks are also used in stringing operation: such as helicopter stringing blocks, cross arm mounted stringing blocks, Hold down stringing blocks, Universal Hook type stringing blocks etc.

Different structure of stringing blocks make the installation of pilot wire rope and conductor easier and faster, also reduce the work load on overhead line. Customers could select suitable stringing blocks according to their requirement.



PRODUCT DETAIL Three sheaves Conductor Pulleys for stringing 2 or 3 conductors

Three sheaves Conductor Pulleys for stringing 2 or 3 conductors

SHSQN508, SHSQN660, SHSQN822, SHSQN916
PRODUCT DETAIL Nylon wheel Conductor Stringing Pulley Blocks

Nylon wheel Conductor Stringing Pulley Blocks

SHDN822 SHSQN822 SHWQN822 SHQ822
PRODUCT DETAIL Three Wheels Pulley Blocks for Stringing 2 conductors on transmission line

Three Wheels Pulley Blocks for Stringing 2 conductors on transmission line

SHSLN660
PRODUCT DETAIL Five Wheels Conductor Stringing Pulley Blocks for 400KV transmission line

Five Wheels Conductor Stringing Pulley Blocks for 400KV transmission line

SHWQN660 SHWQN822
PRODUCT DETAIL Head Board for Stringing Twin Bundled Conductors Pulley Blocks

Head Board for Stringing Twin Bundled Conductors Pulley Blocks

SZ2-8A SZ2A-8 SZ2A-13 SZ2B-13
PRODUCT DETAIL Running Out Blocks for Overhead Line Conductor Stringing

Running Out Blocks for Overhead Line Conductor Stringing

SHDN660 SHSQN660 SHS660 SHSQN822
PRODUCT DETAIL Poleas De Tendido de Conductores de China

Poleas De Tendido de Conductores de China

SHDN660 SHSQN750 SHWQN822
PRODUCT DETAIL Four bundled Conductors Stringing Pulleys with Five rollers central steel roller

Four bundled Conductors Stringing Pulleys with Five rollers central steel roller

SHW508 SHWQN508 SHW660 SHWQN660 SHWQN822

Category: Conductor Pulley Blocks
